Category:
CNC Control Units

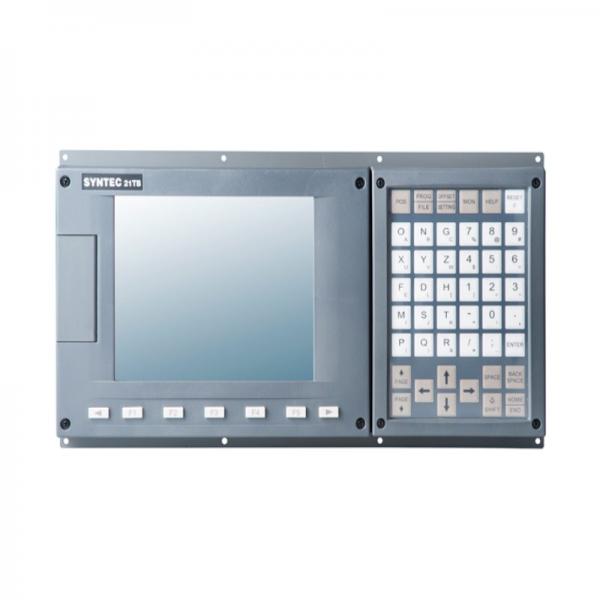

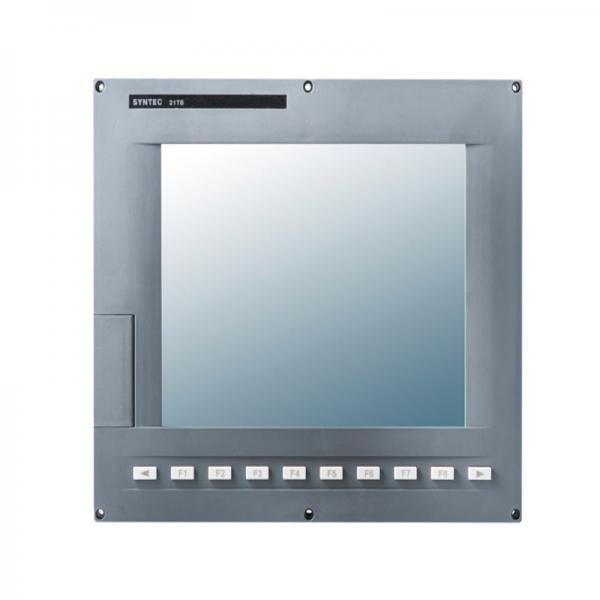

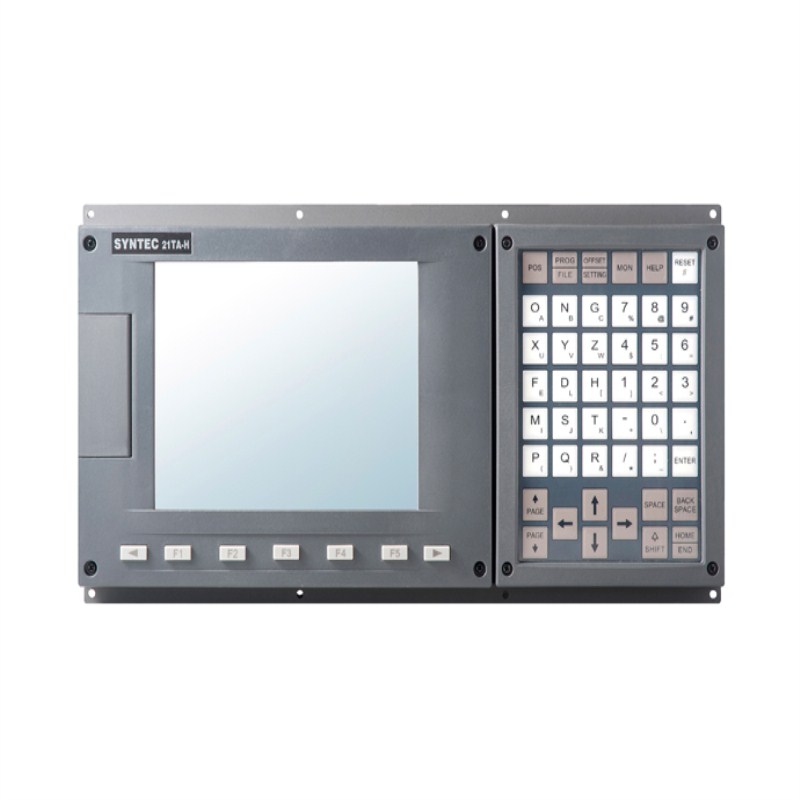

SKU: 21TA/21TA-H/21TB/21TB-H
-Equipped with Yaskawa serial bus communication
-Simpler System
-More expandable
-Easier to install
Product Description
Details
-Equipped with Yaskawa serial bus communication
-Simpler System
-More expandable
-Easier to install
Support M2/M3 Serial Bus Communication
The bandwidth of Mechatrolink-II/Mechatrolink-IIII serial bus communication rises up to 100 Mbps and the resolution is up to 24 bits, enhancing the smoothing during processing.
The distribution of serial bus communication is simple expandable, and anti-jamming, which makes the system more reliable and have better flexibility.
Servo-Integration
It can adjust the driver directly, speed up the development of the machine.
Predict the Service Life of Yaskawa
Warning will be given in advance if there is something wrong with the driver, enhancing availability and adjust the product line in time.
*Software version: 10.116.36
Spindles Tapping
Spindle does not need to decelerate speed to zero, or eve maintains the original speed, proceed tapping via the speed difference between twin spindles, which significantly reduces the tapping time.
Extreme Speed Threading Mode
Improves threading result and efficiency by overlapping technique. Save more than 20% of the time.
Axis-Exchange Feature
The turret of the first axis group can machining with the second spindle; and at the same time, the first spindle occupies the second turret to machine. Reduces the number of machine tools, improves the flexibility and efficiency of machining.
Product Specifications
| Model | 21TA | 21TA-H | 21TB | 21TB-H |
| Storage(DISKA) | 512 | |||
| I/O standaed | 32/32 | |||
| PS/2 | 0 | |||
| RS-232 | 0 | |||
| RS-422/RS-485 | 0 | |||
| RS-485 | 1 | |||
| SRI | - | 1 | - | 1 |
| I/O optional | 96/96 | |||
| DA | 2 | |||
| screen | 8/10.4 | |||
| CF card | 0 | |||
| USB | 0 | |||
| RJ-45 | 1 | |||
| VGA output | 0 | |||
|
PRODUCT
|
||||
| Model | 21TA | 21TA-H | 21TB | 21TB-H |
| Max. Multi-Program | 2 | |||
| Max. Number of Table Tools | 4 | |||
| Look-Ahead | 1000 | |||
| Block Processing Time | 1000 | |||
| Max. PLC-Axis | 1 | |||
| Standard Axis | 4 | 6 | ||
| Max. Axis (optional) | 4 | 8 | ||
| Max. Spindle | 2 | 4 | ||
| Max. Simultaneous Axis Control | 4 | |||
| Min. Control Unit-mm | 0.0001 | |||
| Max. Number of Program Coordinate | 100 | |||
| Max. Number of Tool Length Compensation | 96 | |||
|
SERVO
|
||||
| Model | 21TA | 21TA-H | 21TB | 21TB-H |
| (A/B Phase) | - | |||
| general(CW/CCW) | - | |||
| mechatrolink II(YASKAWA serial) | O | |||
| mechatrolink III(YASKAWA serial) | - | O | - | O |
