Category:
CNC Control Units

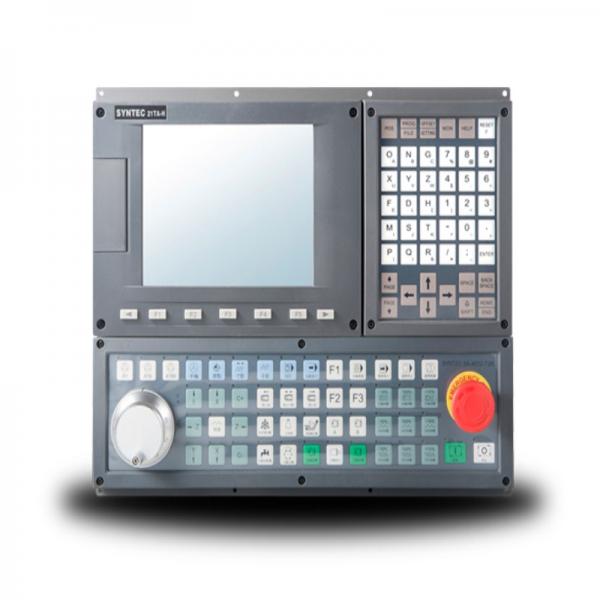

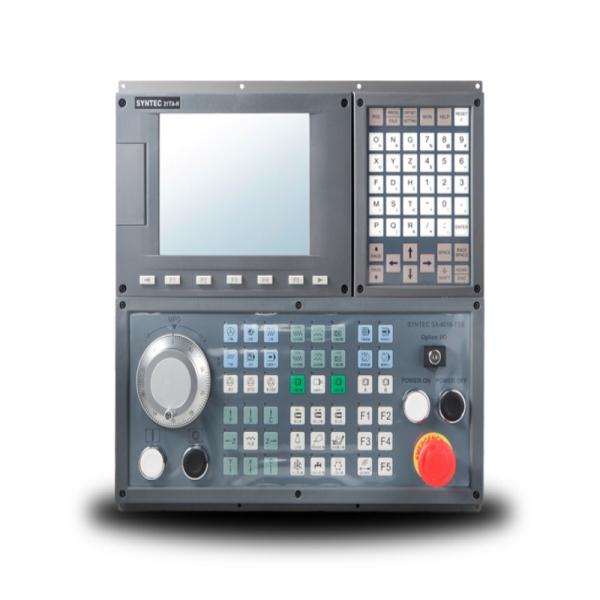

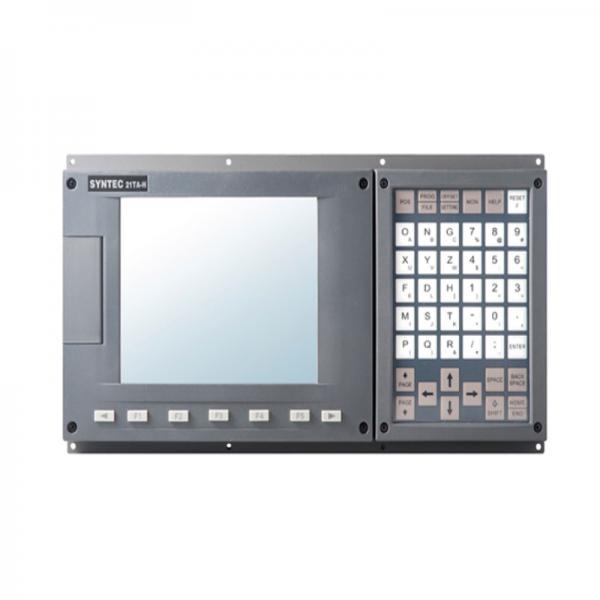

SKU: 21MA/21MA-H
-Equipped with Yaskawa serial bus commuication
-Better synchrnized function
Product Description
Details
-Equipped with Yaskawa serial bus commuication
-Better synchrnized function
High Performance Controller with Serial Bus Connection Structure

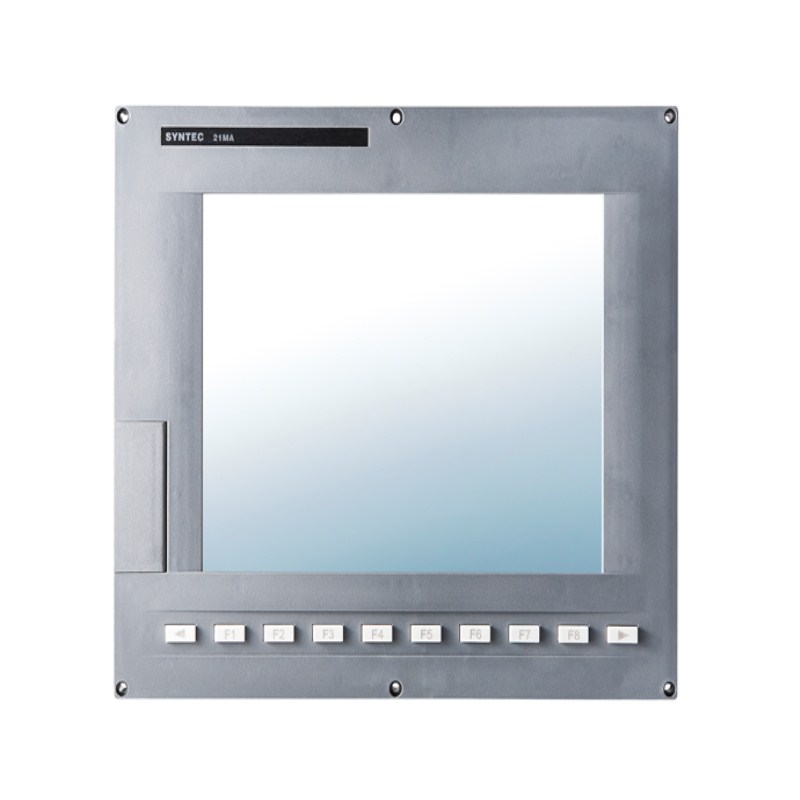

Syntec 21MA controller comes with Yaskawa serial bus Mechantrolink-ll/Mechatrolink-llll connection motion control, improves machining performance by decreasing interpolation time and increasing surface’s smoothness. Serial bus communication control also improves traditional pulse delay of differentiate transfer time between axis, provides a simpler system and easier to install and setup
High Performance & Better Configuration
- 21MA-H HSHP controller
-High resolution Yaskawa axis motor (24bit)
-Linear scale (optional)
-Syntec high resolution spindle motor package
-Supports DD motor (4/5 axis)
-Coolant from center (optional)
-High speed spindle positioning
-High speed rigid tapping
-HPCC flexibility and reliability
Tilt Working Plane Machining
For oblique cutting tool or rotating worktable provides correction function to define the tilt machining plane conveniently.
Product Specifications
| Model | 21MA | 21MA-H |
| Storage(DISKA) | 512 | |
| I/O standaed | 32/32 | |
| PS/2 | 0 | |
| RS-232 | 0 | |
| RS-422/RS-485 | 0 | |
| RS-485 | 1 | |
| SRI | - | 1 |
| I/O optional | 96/96 | |
| DA | 2 | |
| monitor | 8/10.4/12/15 | N/A |
| screen | 8/10.4/12/15 | 8/10.4/12/15 |
| monitor | N/A | 8/10.4/12/15 |
| CF card | 0 | |
| USB | 0 | |
| RJ-45 | 1 | |
| VGA output | 0 | |
|
PRODUCT
|
||
| Model | 21MA | 21MA-H |
| Max. Multi-Program | 2 | |
| Max. Number of Table Tools | 4 | |
| Look-Ahead | 2000 | |
| Block Processing Time | 2500 | |
| Max. PLC-Axis | 1 | |
| Standard Axis | 6 | |
| Max. Axis (optional) | 6 | |
| Max. Spindle | 4 | |
| Max. Simultaneous Axis Control | 4 | |
| Min. Control Unit-mm | 0.0001 | |
| Max. Number of Program Coordinate | 100 | |
| Max. Number of Tool Length Compensation | 96 | |
|
SERVO
|
||
| Model | 21MA | 21MA-H |
| (A/B Phase) | O | O |
| general(CW/CCW) | - | O |
