Category:
CNC Control Units

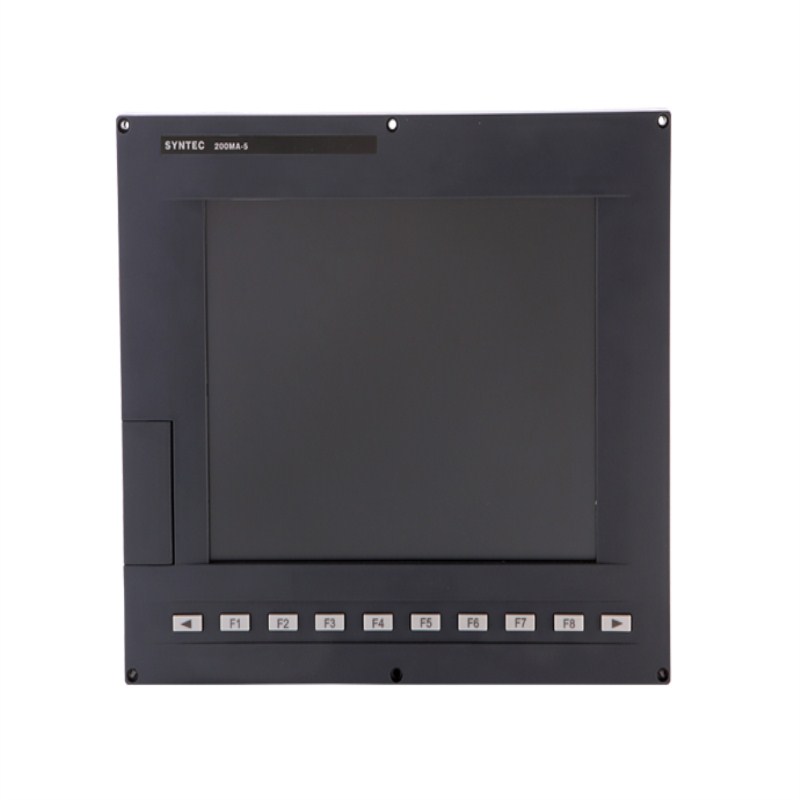

SKU: 200MA
- Equipped with high-performance main board
- Up to 4 axis group
- Better production
Product Description
Details
- Equipped with high-performance main board
- Up to 4 axis group
- Better production
Multi-Spindle and High Performance Product
-Equipped with high performance main board
-Supports Yaskawa Mechatrolink-ll serial bus communication
-Supports at max. of 9 axis and 4 axis groups
High Precision Contour Control (HPCC)
HPCC function fits the discontinuous blocks into a smooth-curve path, and this will enhance the machining precision and reduce the mechanical shock.
Simplified HSHP Parameter
User may choose [Precision Speed level]. [Original path --Smoothing path level], and SPA features to control machining result.
Product Specifications
| Model | 200MA |
| Storage(DISKA) | 256 |
| I/O standaed | 32/32 |
| PS/2 | 1 |
| RS-232 | 1 |
| RS-422/RS-485 | 1 |
| RS-485 | 1 |
| SRI | - |
| I/O optional | 96/96 |
| DA | 1 |
| monitor | 10.4/15 |
| screen | 10.4/15 |
| CF card | 2 |
| USB | 2 |
| RJ-45 | 2 |
| VGA output | 1 |
|
PRODUCT
|
|
| Model | 200MA |
| Max. Multi-Program | 4 |
| Max. Number of Table Tools | 4 |
| Look-Ahead | 2000 |
| Block Processing Time | 3000 |
| Max. PLC-Axis | 3 |
| Standard Axis | 8 |
| Max. Axis (optional) | 9 |
| Max. Spindle | 6 |
| Max. Simultaneous Axis Control | 4 |
| Min. Control Unit-mm | 0.0001 |
| Max. Number of Program Coordinate | 100 |
| Max. Number of Tool Length Compensation | 96 |
|
SERVO
|
|
| Model | 200MA |
| (A/B Phase) | O |
| general(CW/CCW) | - |
| mechatrolink II(YASKAWA serial) | O |
| mechatrolink III(YASKAWA serial) | - |
