CNC Control Units

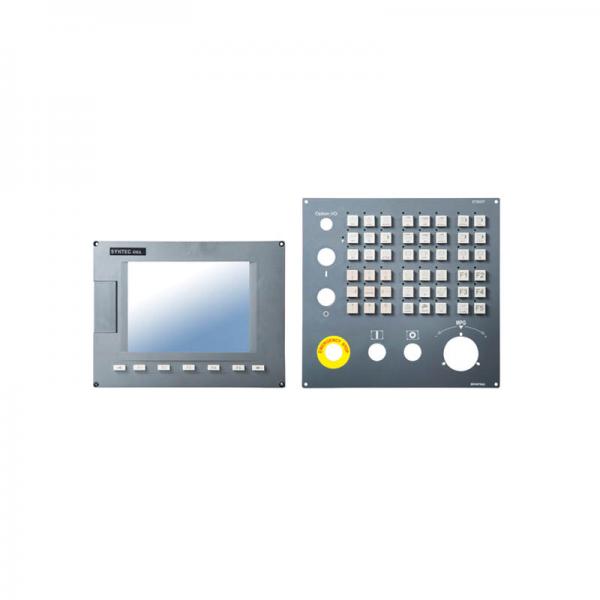

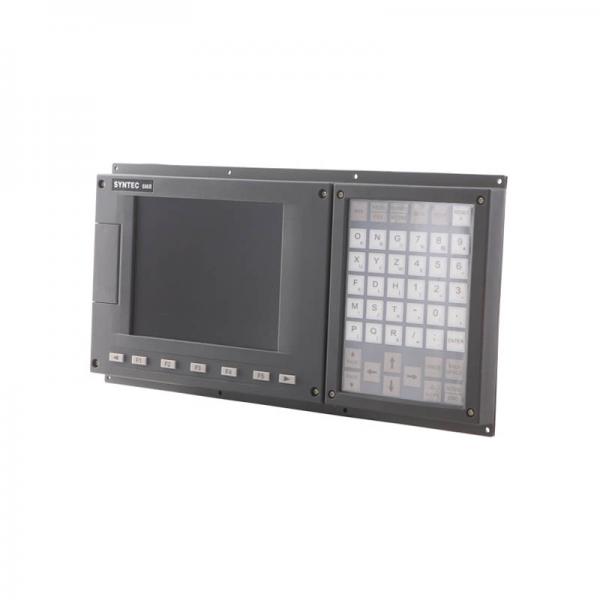

SKU: 6MA/6MB
For milling and machining
2 Spindle Controls with 3 and 4 Axis Options
Product Description
Details
Multi-Spindle Tapping
-Provide multi-spindle machine to enhance the productivity corresponding to the same program
-Set the speed of retracting through parameter, the max. is 300%
6MD/6MD-H Support Serial Bus Communication
-Support high resolution axis motor
-Simple distribution
-Easily install
-Better performance
User-Friendly Interface
- Administration authority
-Prevent from operation mistakes and protect the process confidentiality
Product Specifications
| DONANIM | ||
| Model | 6MA | 6MB |
| Storage(DISKA) | 256 | |
| 1/0 standaed | 32/32 | |
| PS/2 | 0 | |
| RS- 232 | 0 | |
| RS- 422/RS -485 | 0 | |
| RS- 485 | 1 | |
| SRI | ---- | |
| 1/0 optional | ---- | |
| DA | 2 | |
| screen | 8 | |
| CF card | 0 | |
| USB | 0 | |
| RJ-45 | 1 | |
| VGA output | 0 | |
| FONKSiYONLAR | ||
| Model | 6MA | 6MB |
| Max. Multl- Program | 2 | |
| Max. Number of Table Tools | 4 | |
| look-Ahead | 100 | |
| Block Processing Time | 300 | |
| Max. PLC-Axis | 1 | |
| Standard Axis | 3 | 4 |
| Max. Axis (optional) | 3 | 4 |
| Max. Spindle | 1 | 2 |
| Max. Simultaneous Axis Control | 3 | 4 |
| Min.Control Unit - mm | 0.0001 | |
| Max. Number of Program Coordinate | 32 | |
| Max. Number of Tool length Compensatio n | 96 | |
| SERVO | ||
| Model | 6MA | 6MB |
| (A/ B Phase) | 0 | |
| general(CW/CCW) | 0 | |
| mechatrolink II(YASKAWA serial) | ----- | |
| mechatrolink III(YASKAWA serial) | ----- | |
