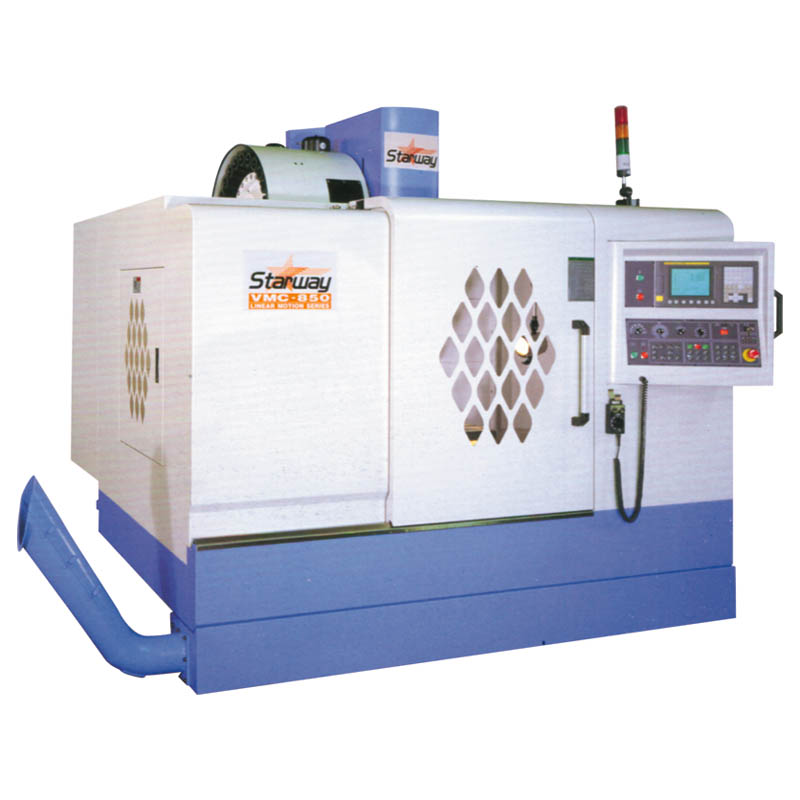

Product Description
-
2 oversized box ways on base.
-
2 oversized linear ways on base is also available.
-
8,000RPM belt-drive spindle.
-
10,000 and 12,000RPM belt-drive spindle are optional.
-
12,000 and 15,000RPM direct-drive spindle are optional.
-
24 tools arm type magazine (optional).
-
BT 40 spindle taper.
-
Full splash guard.
-
Screw type chip conveyor is standard.
-
Linear ways on X, Y axis is optional.
-
Full splash guard.
-
Cutting coolant unit.
-
Heat exchanger in control box.
-
Auto power off.
-
Auto lubrication system.
-
Air blast through spindle.
-
Controller (FANUC).
-
Leveling bolts and blocks.
-
Work lamp.
-
3 color light.
-
Tool box.
-
Armless (Umbrella) type ATC (16 tools).
-
Rigid tapping.
-
Spindle oil cooler unit.
-
Screw type chip conveyor.
-
Operation manual & electric drawing equipment.
-
Remote manual pulse generator.
-
Semi-enclosed guard.
-
Arm type ATC (24 tools).
-
Transformer.
-
CE regulation.
-
Coolant thru spindle (CTS).
-
Coolant thru ballscrew (CTB).
-
Adding 4th axis interface.
-
Built-in CNC rotary table.
-
Built-in auto pallet change (APC).
-
Controller (Mitsubishi).
-
Controller (Siemens Series).
-
Spindle 10,000RPM.
-
Direct-drive spindle 12,000RPM.
-
Direct-drive spindle 15,000RPM.
-
Linear scale.
-
Oil mist unit
-
Oil skimmer.
-
Patented oil skimmer.
-
Chain type ATC (32 tools).
-
Link type chip conveyor and buket.
-
ZF 2 speed gear box.
-
Tool length measurement system.
-
Workpiece
Details
Standard accessories:
VMC-855 / VMC-1055 - optional accessories
Product Specifications
| Item | VMC-855 | VMC-1055 |
| Travel | ||
| X-axis | 800mm | 1,000mm |
| Y-axis | 500mm | 500mm |
| Z-axis | 550mm | 550mm |
| Spindle nose to table | 120~670mm | 120~670mm |
| Spindle center to column | 500mm | 500mm |
| Feed rate | ||
| X. Y. Z. axis rapid traverse | 18,000mm / min (28,000mm / opt.) |
18,000mm / min (28,000mm / opt.)
|
| Cutting feedrate | 10,000mm / min | 10,000mm / min |
| Table | ||
| Table size | 960 x 500mm | 1,120 x 500mm |
| Max. loading capacity | 550kgs | 650kgs |
| Slideway design on Y axis | 2 square slideways / 2 linear guideways(opt.) |
2 square slideways / 2 linear guideways(opt.)
|
| Size of T-slots | 18 x 5 x 100mm | 18 x 5 x 100mm |
| Spindle | ||
| Spindle speed | 60-8,000RPM (option: 10,000RPM & 12,000RPM) |
60-8,000RPM (option: 10,000RPM & 12,000RPM)
|
| Spindle taper | BT40 | BT40 |
| Transmission | Belt drive | Belt drive |
| Motor | ||
| Spindle motor | 7.5kw / 10HP (11kw / opt.) |
7.5kw / 10HP (11kw / opt.)
|
| X, Y, Z, axis motor | 1.8kw (3kw / opt.) |
1.8kw (3kw / opt.)
|
| ATC | ||
| Tool magazine capacity | 16 / 24 | 16 / 24 |
| Max. tool weight | 7kgs | 7kgs |
| Max. tool size (dia. x length) | Ø80 x 300Lmm | Ø80 x 300Lmm |
| Tool shank | BT40 | BT40 |
|
General information
|
||
| Machine net weight | 6,200kgs | 6,500kgs |
| Floor space required (L x W x H) | 2,200 x 2,500 x 2,700mm |
2,200 x 2,500 x 2,700mm
|
| Shipment advice | 20" container or 40" high cube container |
20" container or 40" high cube container
|
