Product Description
Details

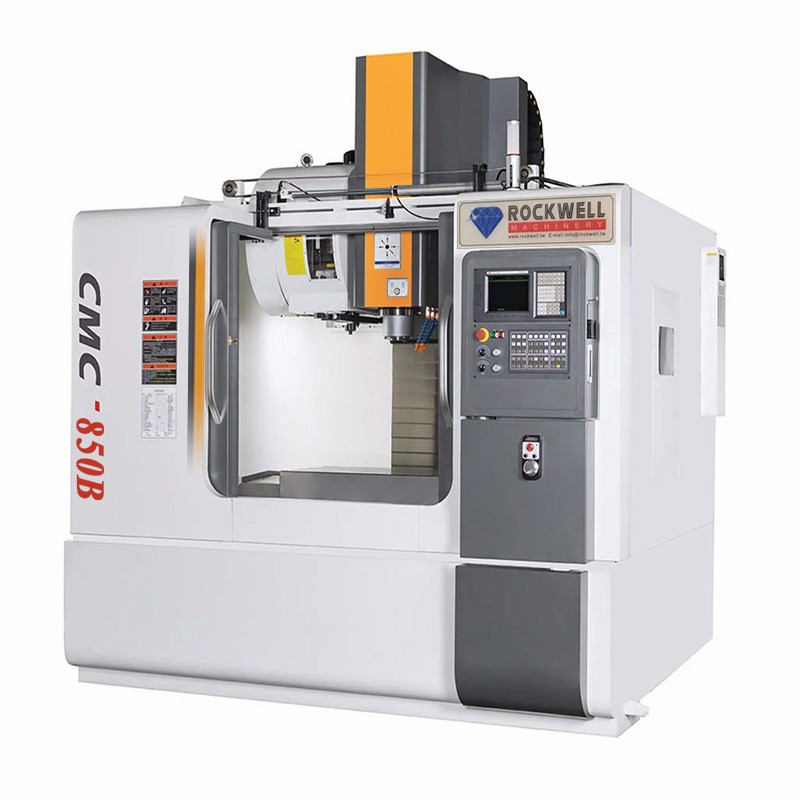

X/Y/Z box way, syntec 22MA control system(mitsubishi or fanuc option), feed servo motor and drive main motor and driver are all syntec, 10000rpm belt spindle made in Taiwan(continue run on 8000rpm) with oil cooler ,air and water coolant , seal front spindle,hand wheel
Product Specifications
|
Item |
feature |
unit |
CMC850B |
|
table |
Table size |
mm |
1100*500 mm |
|
T sot |
mm |
3x18-100 |
|
|
Max.loading |
Kg |
500 |
|
|
travel
|
X/Y/Z |
mm |
800X500x500 |
|
Distance spindle nose to table surface |
mm |
150-650 |
|
|
Spindle axis to column surface |
mm |
650 |
|
|
feeding |
Rapid speed X/Y/Z |
m/min |
24/24/18m/min |
|
Cutting speed X/Y/Z |
mm/min |
2.5-10000mm/min |
|
|
spindle |
Spindle taper |
|
BT40-150 |
|
Spindle speed |
r/min |
40-8000 |
|
|
Spindle capacity |
kw |
7.5 |
|
|
accuracy |
Positioning accuracy |
mm |
±0.015 |
|
Repeat positioning accuracy |
mm |
±0.0075JIS |
|
|
ATC |
Tool magazine capacity |
n o s |
24(arm type) |
|
Max. Tool weight |
Kg |
8kg |
|
|
Max.tools dimension |
mm |
CD130*300 |
|
|
Min.time of tool change |
sec. |
1.75/5 |
|
|
machine |
Overall dimensions |
mm |
2620x2260x2580 |
|
Machine net weight |
Kg |
5800 |
