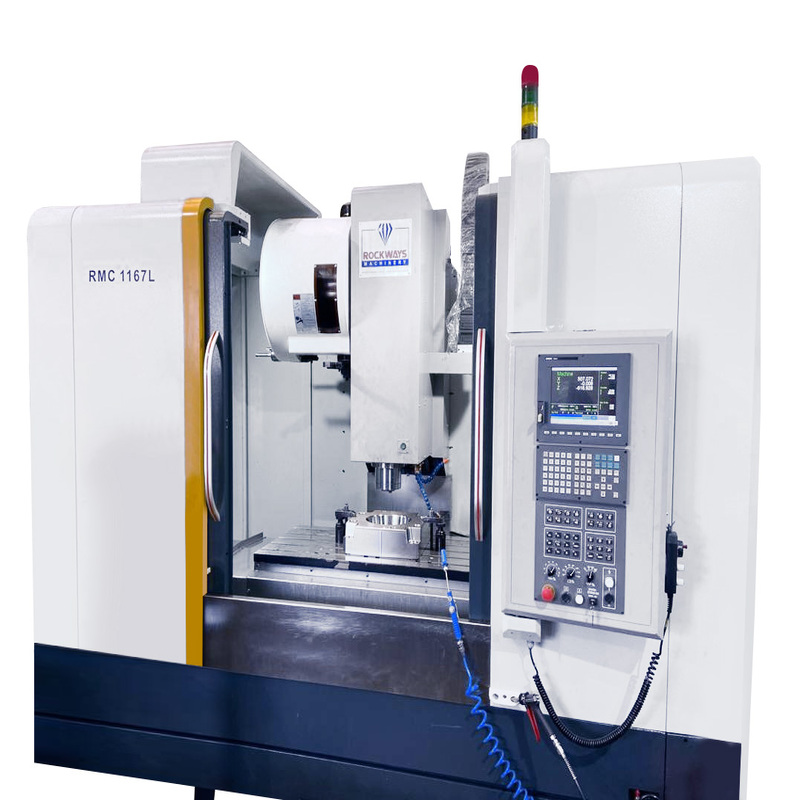

Product Description
Details
X/Y/Z linear guide way, Linear and ball screw made in Taiwan HIWIN OR PMI ,linear socket is roller type, syntec 22MA control system(mitsubishi or fanuc option), feed servo motor and drive main motor and driver are all syntec, 10000rpm belt spindle made in Taiwan(continue run on 8000rpm) with oil cooler ,air and water coolant , seal front spindle,hand wheel
Product Specifications
| Item | feature | unit | RMC-L1167B |
| table | Table size | mm | 600×1200 |
| T sot | mm | 5x18x120 | |
| Max.loading | Kg | 800 | |
| travel | X/Y/Z | mm | 1100X600x700 |
| Spindle Nose to Worktable | mm | 110-810 | |
| Spindle Nose to Column Slideway | mm | 654 | |
| feeding | Ball screws of X, Y and Z axes | 4012 | |
| X axis guideway | mm | MSR35 (ROLLER) | |
| Y axis guideway | mm | MSR45 (ROLLER) | |
| Z axis guideway | mm | MSR45 (ROLLER) | |
| Rapid speed X/Y/Z | m/min | 36, 36, 36 | |
| Drive-type of X/Y/Z servo motor | mm/min | Drive-drive | |
| spindle | Spindle taper | BT40-150 | |
| Spindle speed | r/min |
10000 rpm Belt-type (12000 direct optional) |
|
| Spindle capacity | kw |
11/15 for 10000 rpm 7.5/11 for 12000 rpm |
|
| accuracy | Positioning accuracy | mm | 0.008/300 mm |
| Repeat positioning accuracy | mm | 0.005/300 mm | |
| machine | Overall dimensions | mm | 2300×2200×2400 |
| Machine net weight | Kg | 6500 | |
specifications and design are subject to change without notice.
