JOEMARS

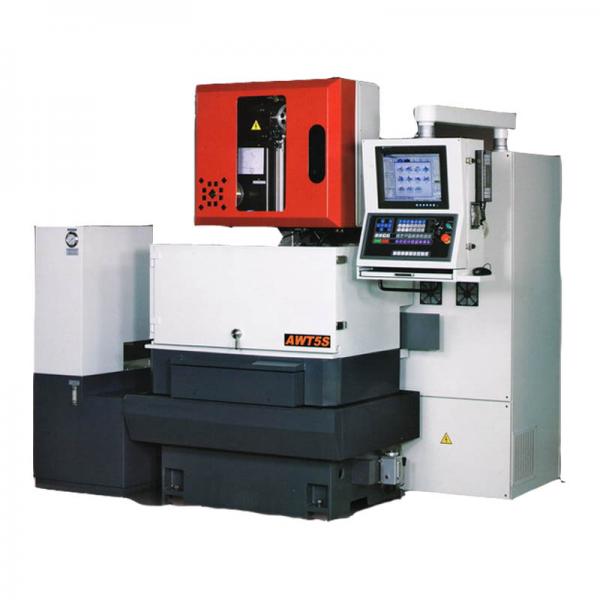

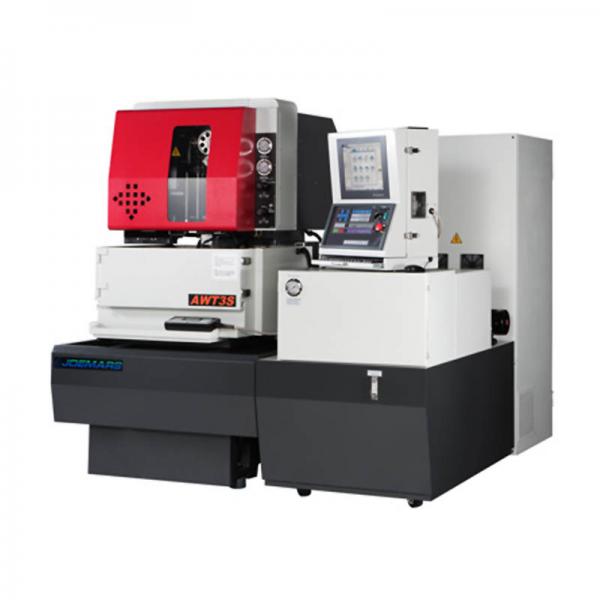

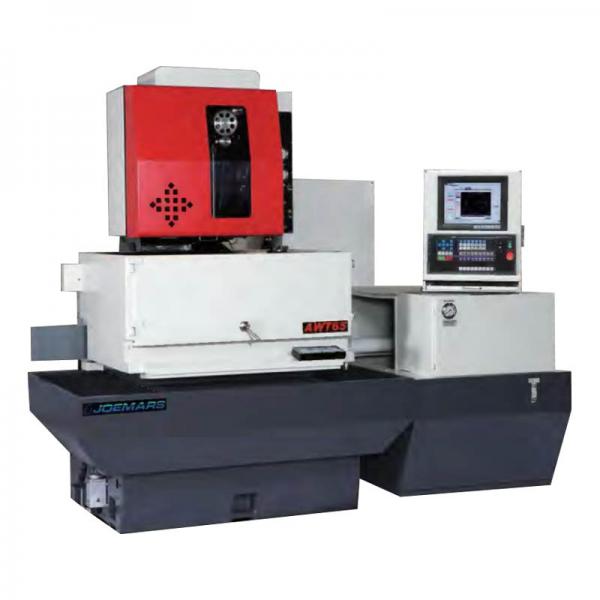

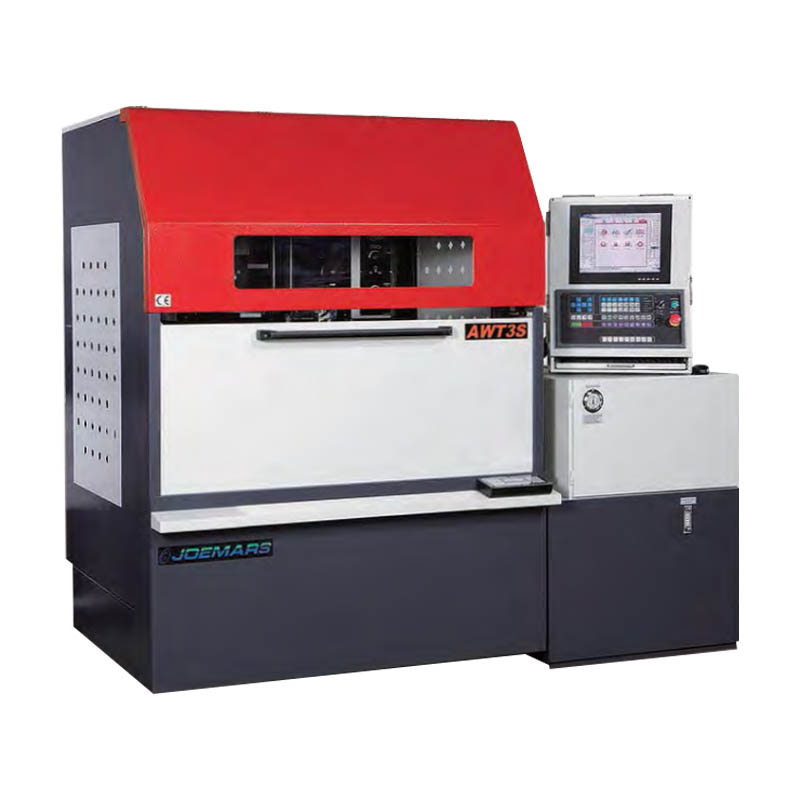

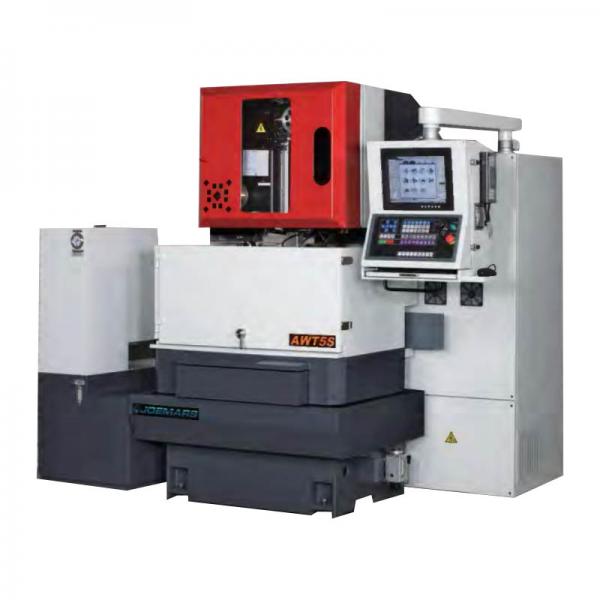

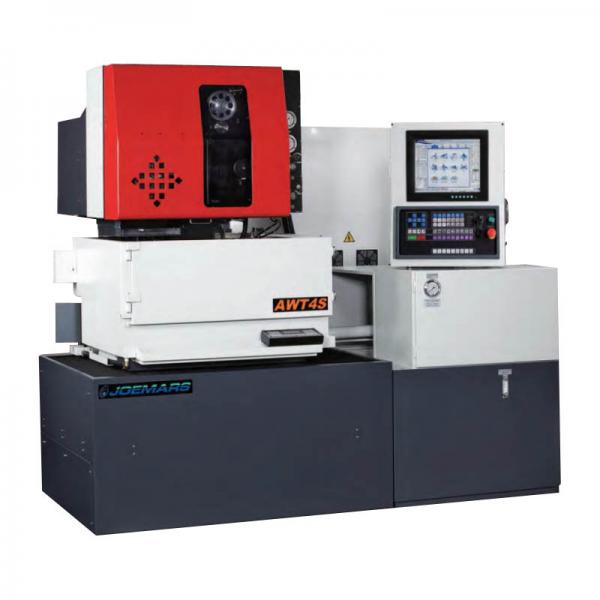

SKU: AWT 3S/AWT 4S/AWT 5S/AWT 6S/AWT 855S/AWT 1275S
Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of wire cut edm, AWT 1275S renders superb engineering supremacy and unmatched mechanical features to outstand others.
Product Description
Details
Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of wire cut edm, AWT 1275S renders superb engineering supremacy and unmatched mechanical features to outstand others.
STANDARD ACCESSORIES
Auto vertical alignment lig / 1set
Tool kit / 1set
Wire guide Ø 0.25 mm – 1set
Brass wire roll Ø 0.25 mm / 1 set
lon exchange resin / 1 set
Filter element / 1 set
OPTIONAL ACCESSORIES
Wire tension meter
Wire guide set Ø ( 0.15mm / 0.20 mm / 0.25 mm / 0.30 mm )
Dielectric cooling unit
Consumable parts ( wire, flushing nozzles……etc. )
Super fine finish circuit
Linear scale ( for X & Y axis )
Auto voltage regulator ( AVR )
20 kgs wire loading system
Product Specifications
| ITEM | UNIT | AWT 3S | AWT 4S | AWT 5S | AWT 6S | AWT 855S | AWT 1275S |
| Max. work piece dimension ( W x D x H ) | mm | 710 x 560 x 205 | 750 x 650 x 245 | 950 x 670 x 295 | 1100 x 720 x 345 | 1280 × 780 × 345 | 1700 × 1050 × 445 |
| Max. work piece weight | kgs | 300 | 450 | 600 | 700 | 1000 | 5000 |
| X travel | mm | 350 | 450 | 560 | 650 | 850 | 1200 |
| Y travel | mm | 250 | 300 | 360 | 400 | 450 | 700 |
| Z travel | mm | 210 | 250 | 300 | 350 | 350 | 450 |
| U travel | mm | 80 | 100 | 100 | 100 | 100 | 150 |
| V travel | mm | 80 | 100 | 100 | 100 | 100 | 150 |
| Drive system | AC servo motor | ||||||
| Wire diameter | mm | Ø 0.15 ~ Ø 0.30 ( standard ) | |||||
| Max. taper angle | mm | +/-20° / 80 | +/-24° / 80mm | +/-24° / 80mm | +/-24° / 80mm | +/-24° / 80 | +/-24° / 80 |
| Machine net weight | kgs | 2100 | 2200 | 2700 | 2850 | 5500 | 9000 |
| Filter system capacity | L | 640 | 700 | 860 | 1200 | 1550 | 2800 |
| Filter element | Paper filter | ||||||
| Ion exchange resin capacity | L | 14 | 30 | ||||
| Water quality control | Auto | ||||||
| Water temperature control | |||||||
| Machine layout dimension ( W x D x H) | mm | 2036 x 2218 x 1990 | 2236 x 2308 x 2070 | 2300 x 2400 x 2190 | 2780 x 2780 x 2400 | 3690 × 3060 × 2290 | 4950 × 4050 × 2620 |
