JOEMARS
SKU: WT 3 S/WT 4S/WT 5S/WT 6S/WT 355/WT 455

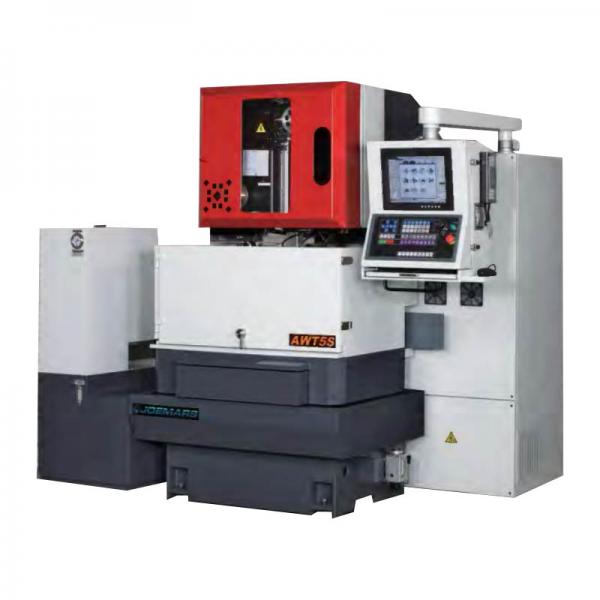

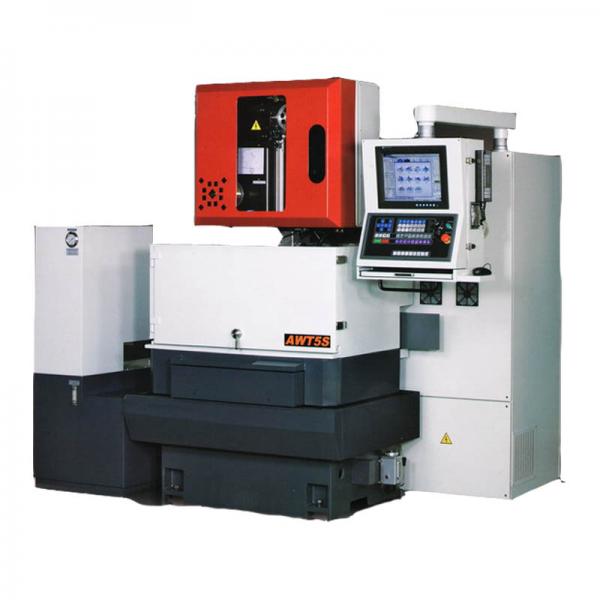

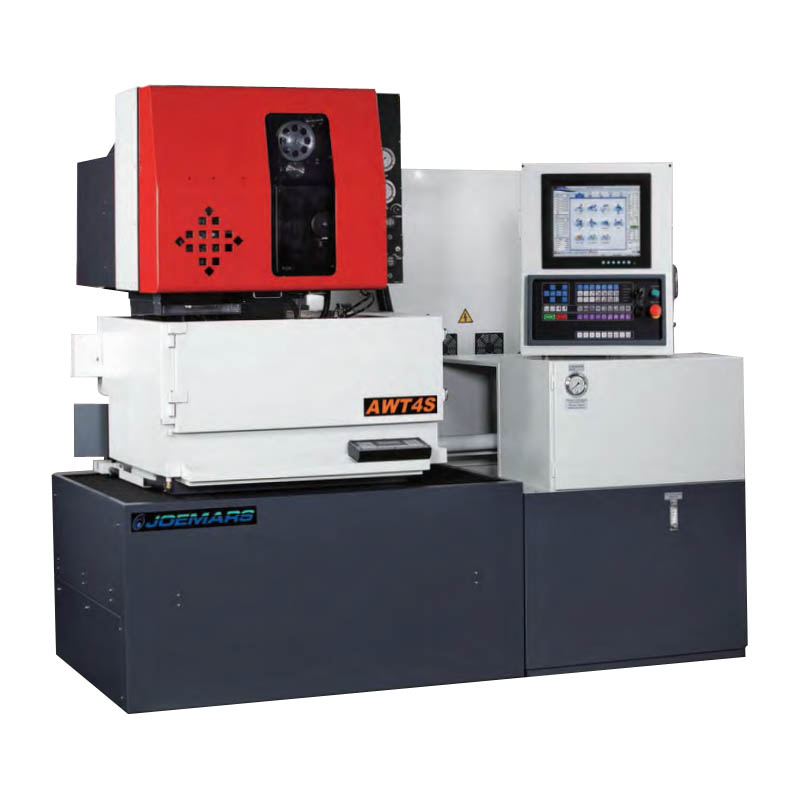

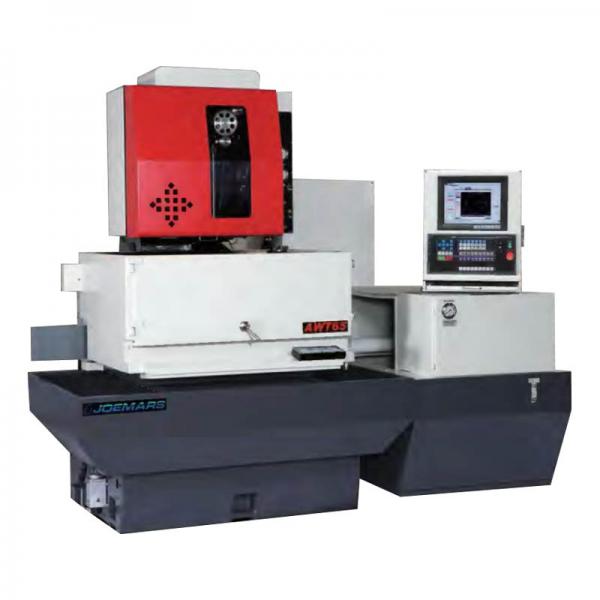

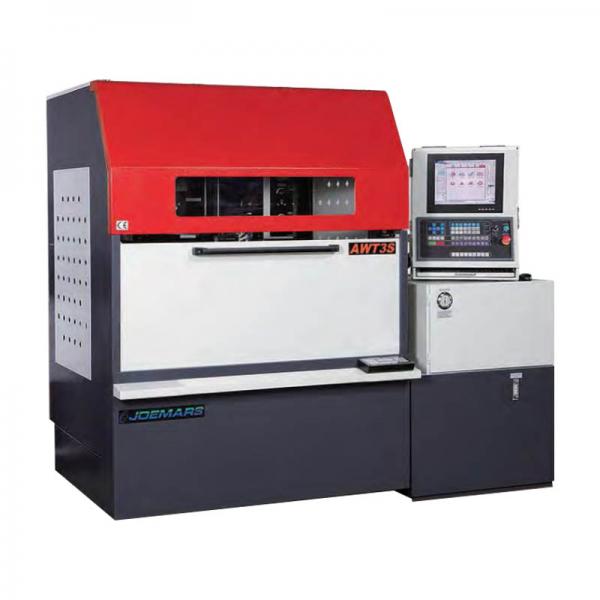

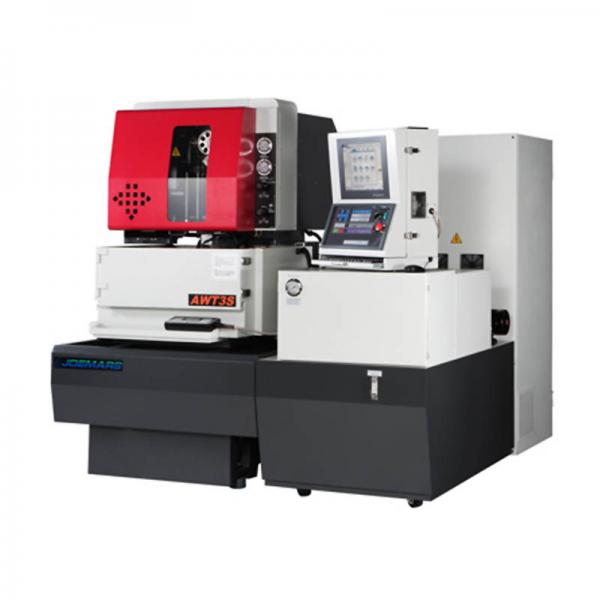

Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of wire cut edm, WT series renders superb engineering supremacy and unmatched mechanical features to outstand others.
Product Description
Details
Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of wire cut edm, WT series renders superb engineering supremacy and unmatched mechanical features to outstand others.
STANDARD ACCESSORIES
Auto vertical alignment lig / 1set
Tool kit / 1set
Wire guide Ø 0.25 mm – 1set
Brass wire roll Ø 0.25 mm / 1 set
lon exchange resin / 1 set
Filter element / 1 set
OPTIONAL ACCESSORIES
Wire tension meter
Wire guide set Ø ( 0.10 mm / 0.15 mm / 0.20 mm / 0.25 mm / 0.30 mm )
Dielectric cooling unit
Consumable parts ( wire, flushing nozzles……etc. )
Super fine finish circuit
Linear scale ( for X & Y axis )
Auto voltage regulator ( AVR )
Product Specifications
| ITEM | UNIT | WT 3 S | WT 4 S | WT 5S | WT 6 S | WT 355 | WT 455 |
| Max. work piece dimension ( W x D x H ) | mm | 710 x 560 x 205 | 750 x 650 x 245 | 950 x 670 x 295 | 1100 x 720 x 345 | 850 × 560 × 205 | 900 × 650 × 245 |
| Max. work piece weight | kgs | 300 | 450 | 600 | 700 | 400 | 550 |
| X travel | mm | 350 | 450 | 560 | 650 | 350 | 450 |
| Y travel | mm | 250 | 300 | 360 | 400 | 250 | 300 |
| Z travel | mm | 210 | 250 | 300 | 350 | 210 | 250 |
| U travel | mm | 80 | 100 | 100 | 100 | 80 | 100 |
| V travel | mm | 80 | 100 | 100 | 100 | 80 | 100 |
| Drive system | AC servo motor | AC servo motor | AC servo motor | AC servo motor | AC servo motor | AC servo motor | |
| Wire diameter | mm | Ø 0.10 ~ Ø 0.30 ( standard ) | Ø 0.10 ~ Ø 0.30 ( standard ) | Ø 0.10 ~ Ø 0.30 ( standard ) | Ø 0.10 ~ Ø 0.30 ( standard ) | Ø 0.10 ~ Ø 0.30 ( standard ) | Ø 0.10 ~ Ø 0.30 ( standard ) |
| Max. taper angle | mm | +/-20° / 80 | +/-24° / 80mm | +/-24° / 80mm | +/-24° / 80mm | +/-20° / 80mm | +/-20° / 80mm |
| Machine net weight | kgs | 2100 | 2200 | 2700 | 2850 | 2000 | 2100 |
| Filter system capacity | L | 640 | 700 | 860 | 1200 | 640 | 700 |
| Filter element | Paper filter | Paper filter | Paper filter | Paper filter | Paper filter | Paper filter | |
| Ion exchange resin capacity | L | 14 | 14 | 14 | 14 | 14 | 14 |
| Water quality control | Auto | Auto | Auto | Auto | Auto | Auto | |
| Water temperature control | Auto | Auto | Auto | Auto | Auto | Auto | |
| Machine layout dimension ( W x D x H) | mm | 2036 x 2218 x 1990 | 2236 x 2308 x 2070 | 2300 x 2400 x 2190 | 2780 x 2780 x 2400 | 2036 × 2218 × 1990 | 2236 × 2308 × 2070 |
