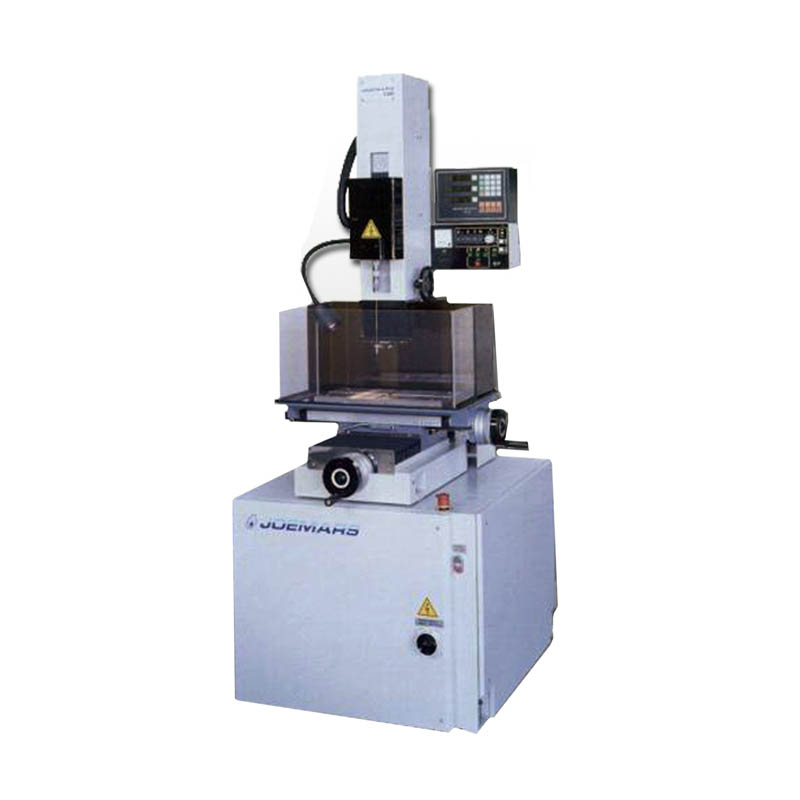

Joemars EDM Drilling D Series
Category:
JOEMARS
SKU: JM325D/JM528D
Price: $1
Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of Drill EDM, JM325D renders superb engineering supremacy and unmatched mechanical features to outstand others.
Product Description
Details
| ITEM | JM325D | JM528D |
| Wok table size | 460*210mm | 600*300mm |
| X,Y Trave | 330*200mm | 350*250mm |
| Z ram servo travel | 345mm | 345mm |
| W axis | ----- | 200mm |
| Guide Trave | 150mm | 150mm |
| Max, workpiece weight | 100kgs | 450kgs |
| Electrode | 0.2mm – 3.0mm | 0.2mm – 3.0mm |
| Max, electrode length | 400mm | 400mm |
| Ram platen to worktable | Distilled wate | Distilled wate |
| Capacity weight | 10L*2 | 10L*2 |
| Machine weight | 620kgs | 900kgs |
| Machine dimension | 865*1465*2070mm | 1020*4545*2070mm |
Product Specifications
| Generator: | |
| Max, current output | 25A |
| Peak current setting | 10 steps (0-9) |
| C-box setting | 10 steps (0-9) |
|
T-on settings
|
20 steps (0-19) |
| T-off settings | 20 steps (0-19) |
| Gap voltage settings | 10 steps (0-9) |
| Servo control | Step less (VR control) |
