CNC TURNING MACHINES

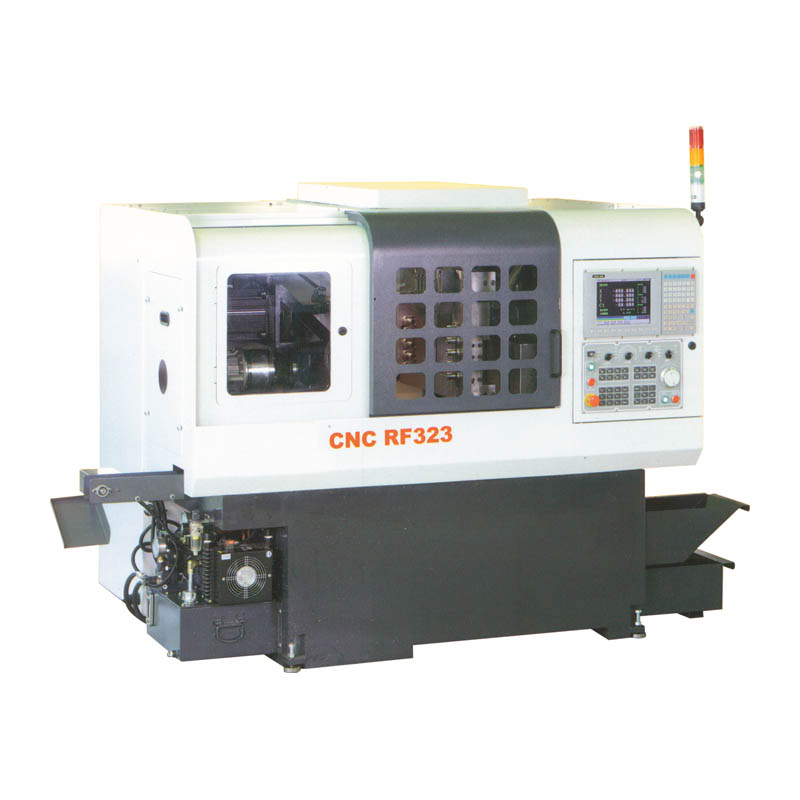

SKU: RF-C323
Stable, High-speed spindle
The spindle is adopted P4 grade bearings. We use the control system of high-speed, high precision spindle, complete with C axis to do orientation function etc. It can promote processing efficiency and machine’s stability.
Product Description
Details
Stable, High-speed spindle
The spindle is adopted P4 grade bearings. We use the control system of high-speed, high precision spindle, complete with C axis to do orientation function etc. It can promote processing efficiency and machine’s stability.
Linear Sliding Rail And Lead Screw
The leading mechanism of Ballscrews for precision linear Guideway is operated by nut and and sliding block to get precision position and high-structure function.
MPG Test Function
Easily operation of controller, you can use MPG hand-wheel to test after program designed as well as prove program is correct to lathe products automatically. Enhanced efficiency, reduced cost, personal inaccuracy decreasingly.
Option Accessories
Chip Conveyor: The chip conveyor allows easy collection of chips during operation.
Automatic Volt. transformer & stabilizer: It keep table power and transmission outlet completely to avoid breakdown of machine.
Auto bar feeder machine.
Standard Accessories
Operative Lamp 1 PC
Tool Box 1 SET
Stop Bar 1 PC
Drilling Shaft 4 PCS
Oil Siphon 1 PC
Oil Bottom Pan 1 PC
Parts Converyor 1 SET
Option Accessories
Auto bar feeder machine
Chip Conveyor
Automatic Volt. Stabilizer (15 KVA)
Automatic Volt. Transformer & Stabilizer (15 KVA)
Product Specifications
| RF_C323 | |
| Max. Turning O.D(3 jaw) |
ø33 mm(ø100 mm)
|
| Max Turning Length | 100 mm |
| Traverse X | 290 mm |
| Traverse Y | 320 mm |
| Traverse Z | 220 mm |
| X-axis Motor |
0.85kw(Yaskawa)/1kw(Panasonic)
|
| Y-axis Motor |
0.85kw(Yaskawa)/1kw(Panasonic)
|
| Z-axis Motor |
0.85kw(Yaskawa)/1kw(Panasonic)
|
| Spindle Motor |
4.4kw(Yaskawa)/5kw(Panasonic)
|
| Spindle Speed(3 jaw) |
0~6000 rpm(0~3000 rpm)
|
| O.D. Tool(6 pcs) | □16x16x110mm |
| I.D. Tool(5 pcs) | ER20-ø25mm |
| Front Side Milling(5 pcs) |
ER20-0.85kw(Yaskawa)/1kw(Panasonic)
|
| Side Milling(5 pcs) |
ER20-0.85kw(Yaskawa)/1kw(Panasonic)
|
| Milling Speed | 0~6000 rpm |
| Coolant Pump Motor | 600 w |
| Oil Tank | 200 L |
| Hydraulic Motor | 0.96 kw |
| Maching Dimension |
L2600 x W1450 x H1850 mm
|
| Net Weight | 2000 kg |
| Controller |
SYNTEC LATHER-900T
|
